380V was connected to the electrolux esl94321la dishwasher.

Post by **EvgeniyAndroid** » 12 Aug 2022, 14:17

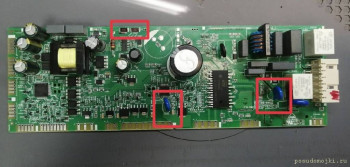

Hello everybody. This is my first time repairing dishwashers specifically. I will be glad to receive any help possible. A client brought a dishwasher, and according to him, 380 V went to the board. After that, the device does not turn on (it would have turned on after that). two 22 ohm resistors burned out. (R3160, R3002), varistors RV3002 and (RV3001) and also two fuses (F3001, F3000). What elements could still be broken through and in which direction should we look first? And is there a diagram for this model somewhere?
The name of the board is edw-pb150 01e.

Post by **vovans14** » 18 Feb 2023, 12:45

the same board does not heat dishwasher. It doesn’t give an error, do you have any diagrams or ideas? I changed the relay, the heating element is good, I don’t know where to look!

Osmol · Post by **Osmol** » 01 May 2023, 12:39

EvgeniyAndroid, Good afternoon! This is exactly the same problem. Decided?

Goose · Post by **Goose** » 19 Jun 2023, 23:12

Is there a diagram?

Product · Post by **Product** » 13 Jul 2023, 11:21

the same board...
can anyone take a high-quality photo so that the components are visible?
otherwise the master put a signature on the board with a soldering iron..

Product · Post by **Product** » 13 Jul 2023, 11:23

If anyone needs, I can measure the components you are interested in

Abyssinian Well · Post by **Abyssinian Well** » 28 Jul 2023, 07:13

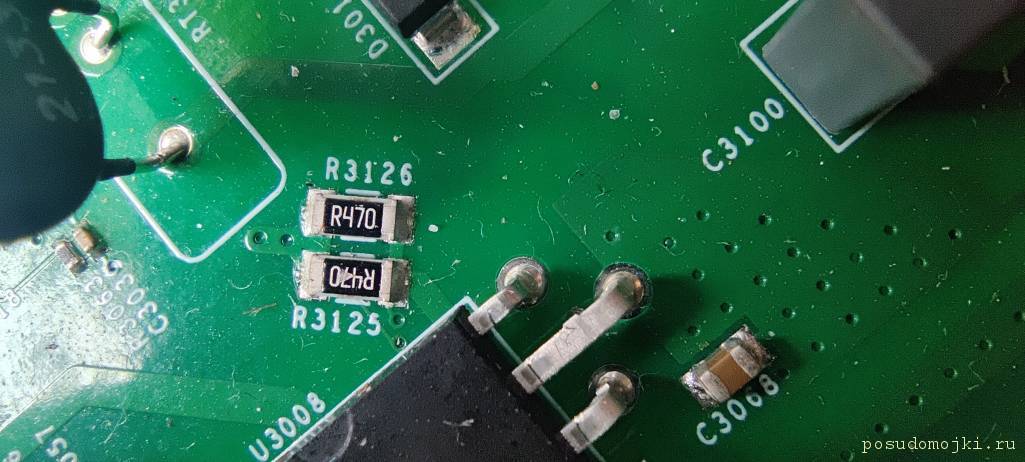

Good afternoon I’m interested in the resistance R3125, R3126 are on the board in parallel, burned out.

Post by **ig_night** » 28 Jul 2023, 07:38

Please))

Post by **ig_night** » 29 Jul 2023, 13:36

Abyssinian Well,

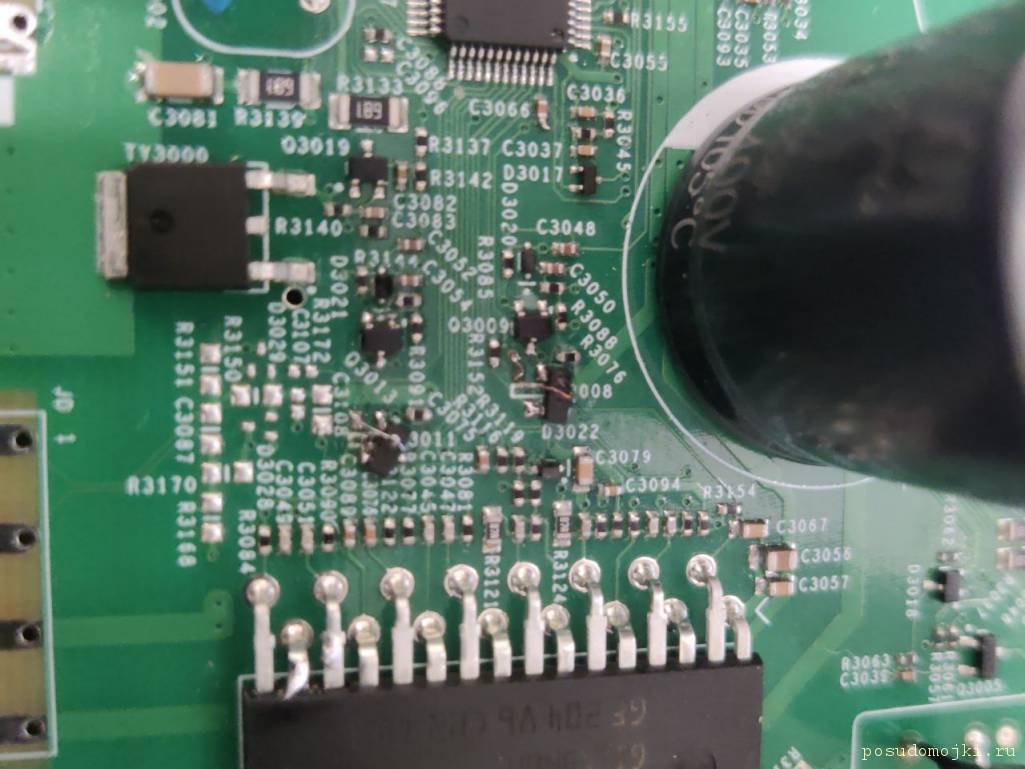

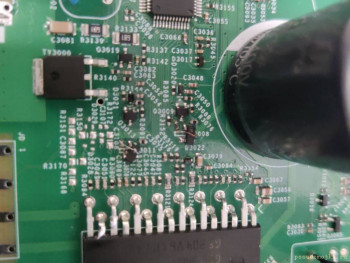

Is this photo enough?

Abyssinian Well · Post by **Abyssinian Well** » 28 Aug 2023, 07:14

Thanks a lot

Ladle · Post by **Ladle** » 17 Sep 2023, 12:58

Abyssinian Well, my varistor RV3002 burned out, write the value. Thank you

Post by **Victor.Jesters** » 26 Nov 2023, 19:26

EvgeniyAndroid, we made a dishwasher. Same problem.

Sergey · Post by **Sergey** » 13 Jan 2024, 11:56

Good afternoon!
Please tell me the nominal value of resistance R3140, after a short circuit on the drain pump, a triac with this resistance needs to be replaced...

Graphics · Post by **Graphics** » 24 Jan 2024, 10:44

Hello, please tell me who I can send a payment for repairs to. The cable between the control board and the main module was frayed, 220 was stitched onto the case. The cable was restored, now it gives the following iCO error (12 blinks) There is no connection between the board and the control panel.

Cargo · Post by **Cargo** » 07 Feb 2024, 19:21

ig_nat, Hello, can you send a photo of the R3005, which instead capacitor is soldered

Post by **AndreiDOm** » 19 Feb 2024, 13:17

Product, Good afternoon, tell me the values of the resistor R3122 and the capacitor below C3075, it looks like

Sent after 1 minute 41 seconds:
ig_nat, Good afternoon, tell me the values of the resistor R3122 and the capacitor below C3075, it seems
